H3000 6X4 Dump Truck

Tel: +8619853185188
WhatsApp: +86 19853185188
E-mail: Barry_Zhang@shacman-export.com
Products Configuration
Configuration

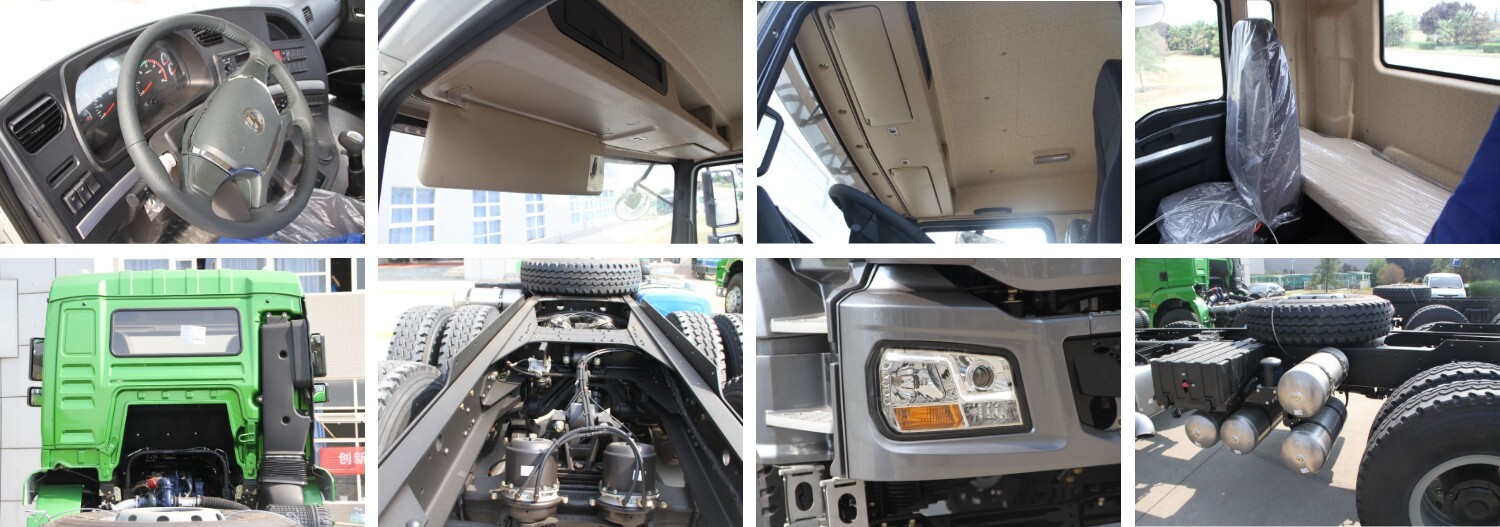

Product Details

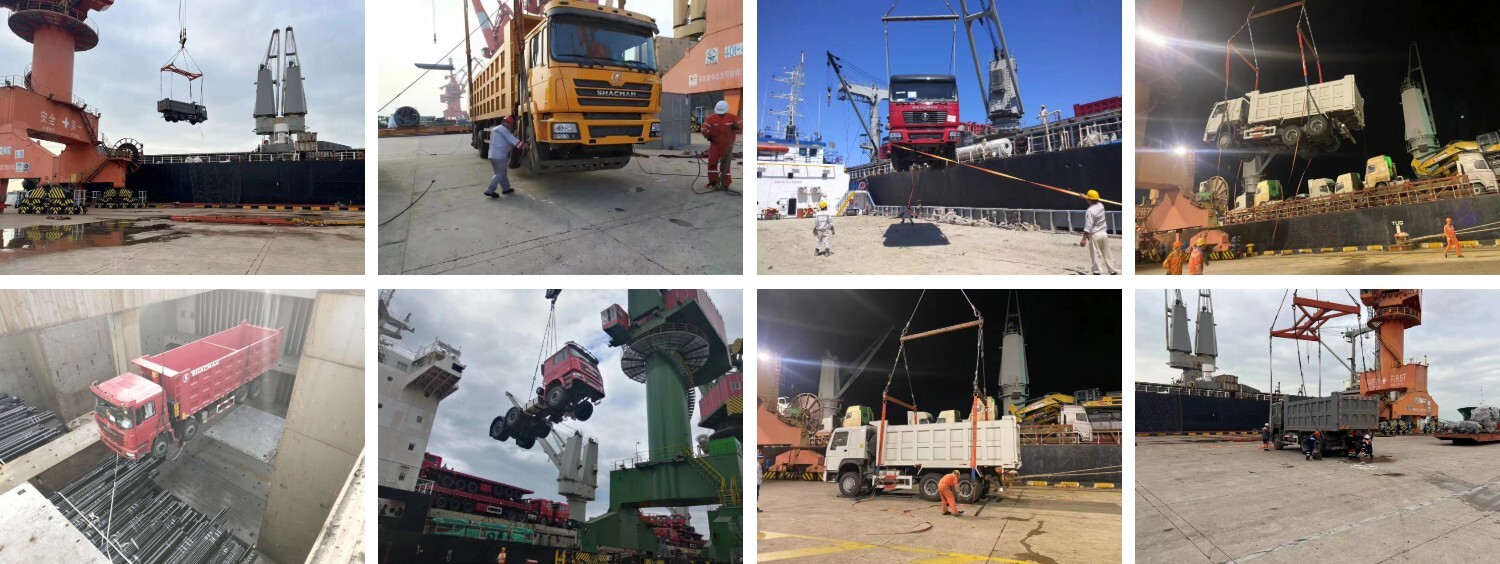

Shipping at China loading port
Representative Vehicle ModelSX3255MT384
CabinH3000 cabin with one berth (sleeper), with Air-conditioner (A/C), up/down and front/back adjustable steering wheel, safety belt, exterior sun visor etc.
EngineModelWEICHAI, WP10.380E22, 380HP, Euro II
Type6 cylinder in line, 4 stroke direct injection diesel engine, water cooling, Intercooler Turbocharged.
ClutchHydraulic control air assisted.
TransmissionFAST brand, 10JSD180+QH50, 10 forwarder & 2 reserve, manual.Main and auxiliary transmission structure, main transmission with double counter shaft , auxiliary transmission with planetary reduction.
Steering SystemZF technology, power steering with hydraulic system.
Front axle9500kg, MAN axle
Rear axle16000kg, MAN double-stage reduction axle
Braking SystemService brake: dual-circuit air pressure brake;Parking brake (emergency brake): spring storage energy without air.Auxiliary brake: Engine exhaust brake.
Electrical SystemVoltage: 24VGenerator: 1540WStarter: 7.5 kWBattery: 12V/165Ah, 2 pieces.Cigar-lighter, horn, headlamps, fog lights, brake lights, indicator and reverse light.
Tire12.00R20, steel radial tires, plus one spare tire (totally 11 units)
Tank Volume (L)400L
Maximum Speed (km/h)90
Dump body dimension (mm)5600X2300X1500, bottom 8mm, side 6mm
Overall dimension (mm)8800X2550X3400

H3000product details@1x.jpg


Online Consultation

If you have any questions about the product or purchase,

you can fill out the form below to describe your problem and we will get back to you as soon as possible!

SEND

Products Recommended
