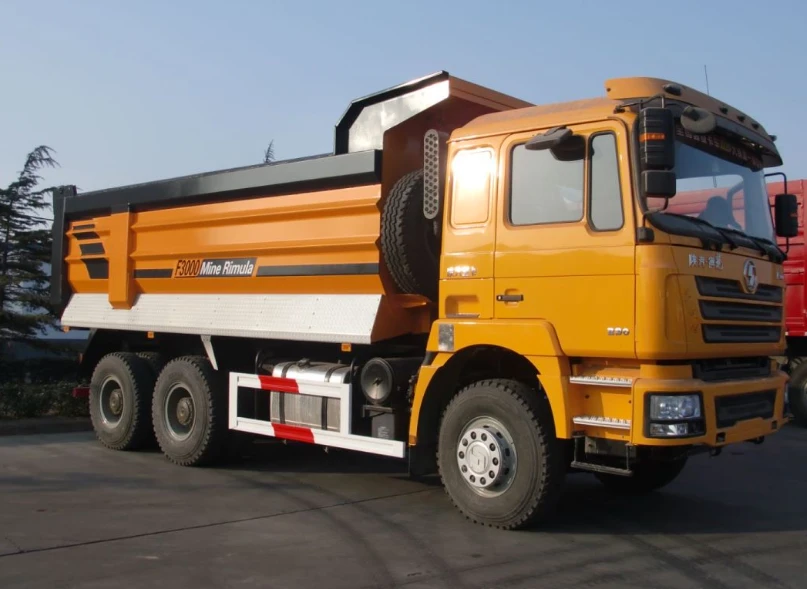

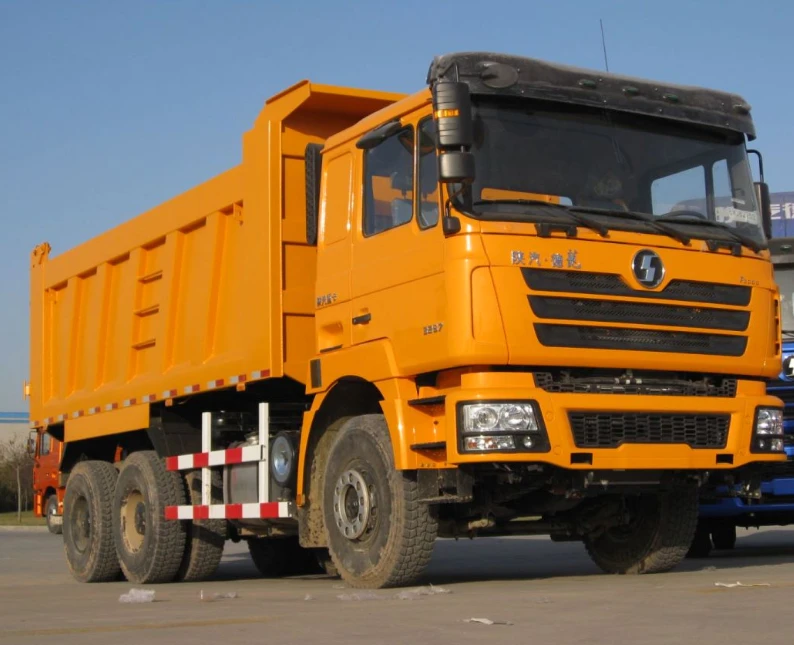

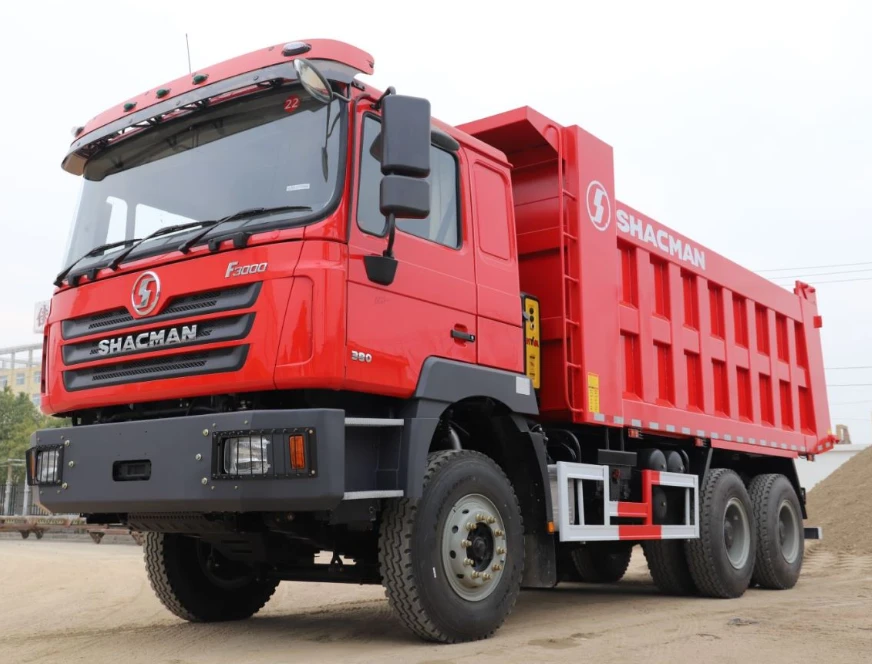

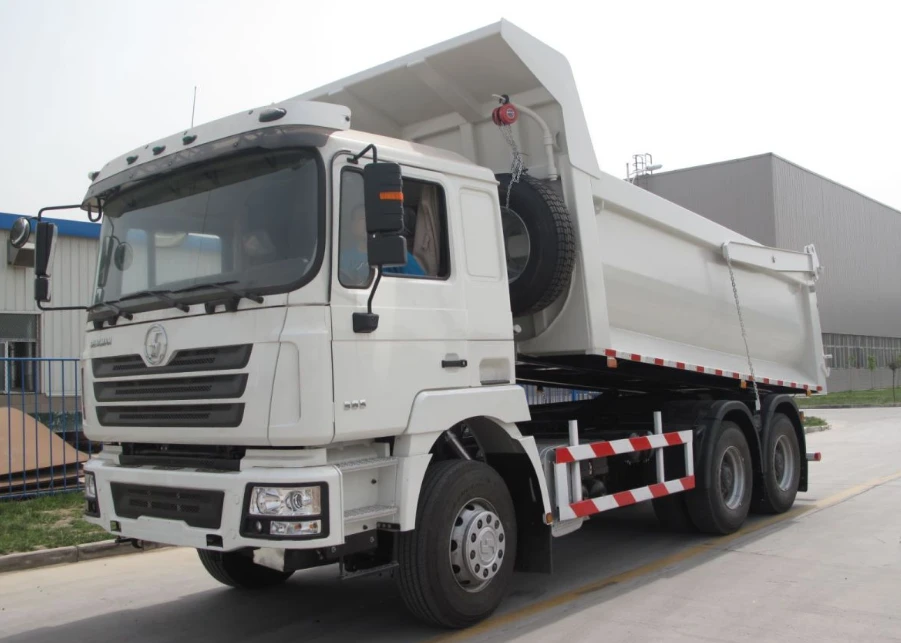

F3000 6X4 Dump Truck

Tel: +8619853185188
WhatsApp: +86 19853185188
E-mail: Barry_Zhang@shacman-export.com
Products Configuration
Configuration
Product Details
Shipping at China loading port
Representative Vehicle ModelSX3255DT384

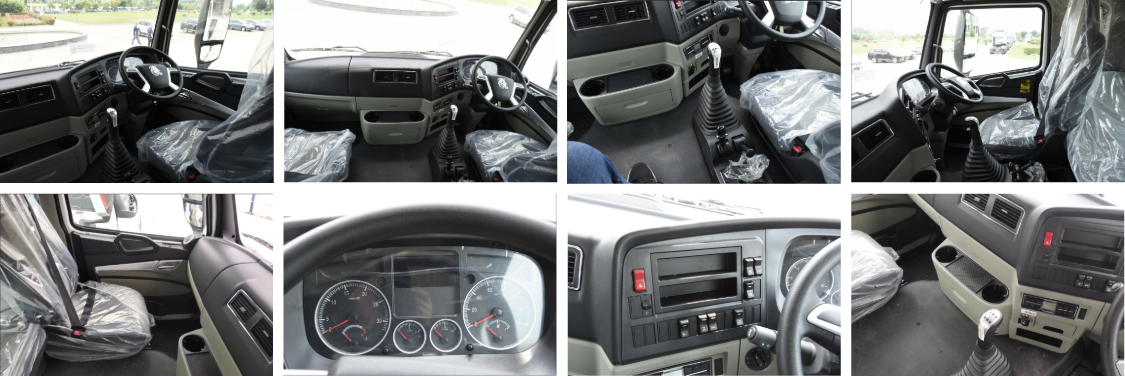

CabinF3000 cabin with one berth (sleeper), with Air-conditioner (A/C), up/down and front/back adjustable steering wheel, safety belt, exterior sun visor etc.
EngineModelWEICHAI, WP10.380E22, 380HP, Euro II
Type6 cylinder in line, 4 stroke direct injection diesel engine, water cooling, Intercooler Turbocharged.
ClutchHydraulic control air assisted.
TransmissionFAST brand, 10JSD180+QH50, 10 forwarder & 2 reserve, manual.Main and auxiliary transmission structure, main transmission with double counter shaft , auxiliary transmission with planetary reduction.
Steering SystemZF technology, power steering with hydraulic system.
Front axle9500kg, MAN axle
Rear axle16000kg, MAN double-stage reduction axle
Braking SystemService brake: dual-circuit air pressure brake;Parking brake (emergency brake): spring storage energy without air.Auxiliary brake: Engine exhaust brake.
Electrical SystemVoltage: 24VGenerator: 1540WStarter: 7.5 kWBattery: 12V/165Ah, 2 pieces.Cigar-lighter, horn, headlamps, fog lights, brake lights, indicator and reverse light.
Tire12R22.5, tubeless tires, plus one spare tire (totally 11 units)
Tank Volume (L)300L
Maximum Speed (km/h)90
Dump body dimension (mm)5600X2300X1500, bottom 8mm, side 6mm
Overall dimension (mm)8800X2550X3400
